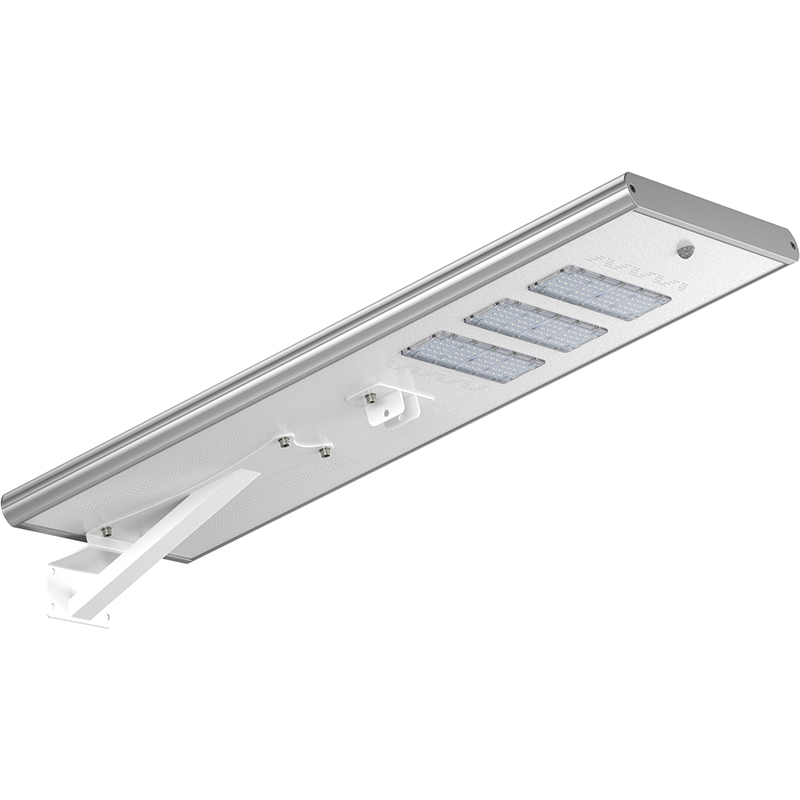

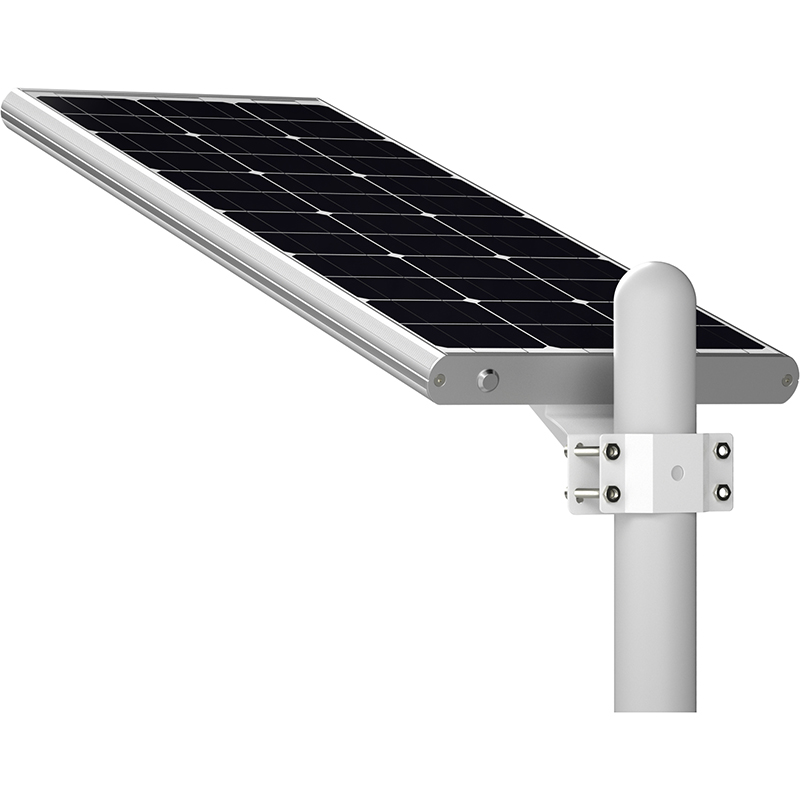

Compared with the split solar street light, the integrated solar street light is simply to integrate the four main parts of the battery, solar panel, light source and solar controller into one project, making a lamp head, and then configure a light pole or a pick arm.
Features:
In the daylight, the panel will accept solar radiation, converting the solar energy to electricity, and the electricity will be reserved in the battery. The lamp head is powered by the battery at night. The solar controller plays the function of adjusting the power supply time, power transmission, and power supply control.
| Power | 10W | 15W | 20W | 30W | 120W |
| Size(mm) | 500*200*43 | 700*200*43 | 750*360*50 | 820*430*50 | 1630*500*60 |
| Led Brand | bridgelux | bridgelux | bridgelux | bridgelux | BELIEVE |
| Led Module | 1Module | 1Module | 1Module | 1Module | 6Module |
| Led qty | 60 pcs | 60 pcs | 96 pcs | 96 pcs | 64pcs*6 |
| Lumens | 110lm / w | ||||
| Panel Size(mm) | 500*170 | 700*170 | 750*331 | 820*398 | 1670*500 |
| Panel Watts(w) | MONO 15W | MONO 20W | MONO 45W | MONO 55W | MONO 150W |
| Battery type | 32700 LiFePO4 BRAND NEW | ||||
| Battery | 3.2V 20ah | 3.2v 24ah | 12.8v 18ah | 12.8v 24ah | 12.8v60ah |
| Charging Time | 5-6 hours | ||||
| Work Mode | sensor | sensor | Time(3H 100% +3H 50%+6H30%）/sensor | ||
| Days last | 3 days rainy days back up | ||||
| Mounting Height | 3-5 m | 3-50m | 4-6m | 4-6m | 8-10m |
| Power | 40W | 60W | 80W | 100W |
| Size(mm) | 820*430*50 | 920*430*50 | 1070*430*50 | 1326*430*50 |
| Led Brand | bridgelux | bridgelux | bridgelux | bridgelux |
| Led Module | 2 Modules | 3Module | 4Module | 5Module |
| Led qty | 50pcs*2 | 50pcs*3 | 50pcs*4 | 50pcs*5 |
| Lumens | 90lm / w | 110lm / w | ||
| Panel Size(mm) | 810*398 | 910*398 | 1060*398 | 1316*398 |
| Panel Watts(w) | MONO 55W | MONO 60W | MONO 70W | MONO 85W |
| Battery type | 32700 LiFePO4 BRAND NEW | |||
| Battery | 12.8v 12ah | 12.8v 18ah | 12.8v 24ah | 12.8v 36ah |
| Charging Time | 3-5 hours | |||
| Work Mode | sensor | |||
| Days last | 3 days rainy days back up | |||
| Mounting Height | 4-5 m | 5-7m | 6-8m | 6-8m |
The All-In-One solar street light has a wide range of applications and can be used in remote areas without a power station frame, such as islands, landscape areas, mountains, etc.
Product Confirgurations:
All in One solar street light is a new technology of solar street light.

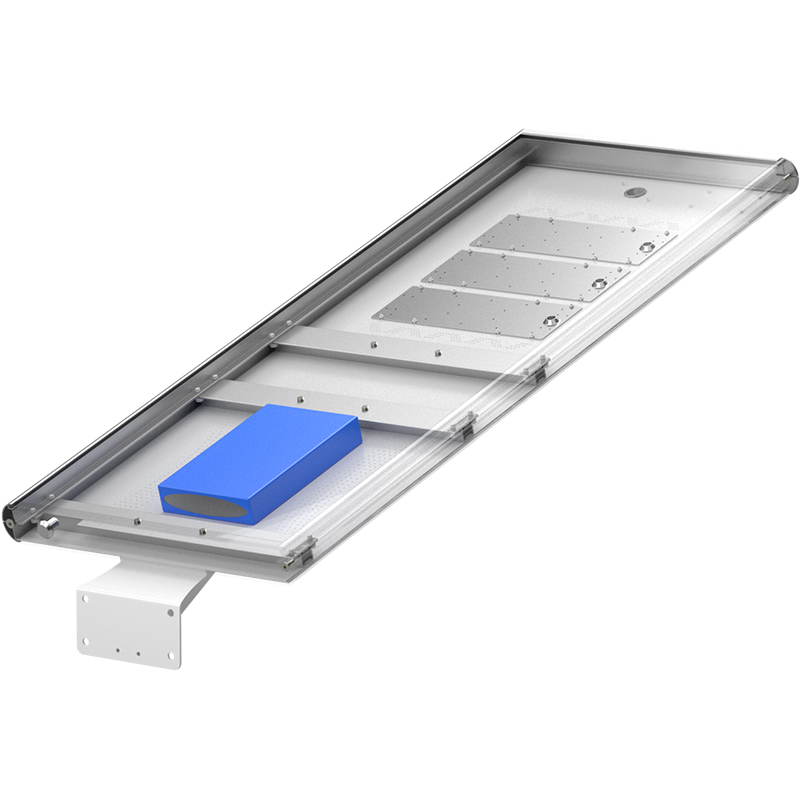

With an all-in-one design, its solar panel, LED light, lithium battery and charge controller are all integrated into one body.
